Pro controller range 4-channel version

Prolyte
The Aetos range is fully equipped to meet future demands in lifting equipment and offers clever features and carefully engineered product attributes. It comprises standard 250kg, 500kg and 1000kg hoists and controls.

Control made easy
ProLyft Aetos controllers have been engineered with an understanding of the needs of rigging operators. The front panel layout and the functionality of the buttons have been carefully designed to meet the demands of daily practice in lifting, where any selection mistake can create an overload situation.
The Aetos Pro controller range
The Aetos Pro controllers are designed for:
- Professional rental companies, demanding a flexible control system to facilitate the frequent change of lifting configurations, offering both easy operation and a clear overview of the selected and operated hoists
- Permanent installations, where controllers are centralised and operated remotely; and where there is a growing demand for multiple remotes and E-stops
- Use with touch screen remotes, enabling you to create groups of hoists or patch your hoists to any control position.

Specifications

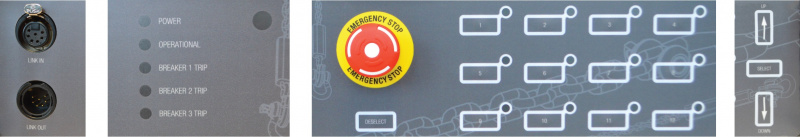

Front panel:
- Sealed front panel with integrated buttons
- LED indicators for “power”, “breaker trip” and “operational”
- Hoist selection switches to select the group of hoists to operate
- LED indicators to show the selection per switch
- LED output automatically adjusts to light conditions:
• Bright in the sun
• Soft in the darkness of a stage
- Group up/down switch
- Bump function within a selected group
- Single deselect button for easy clearing of the previous selection
- Emergency stop at SIL2 level

Available models:
- 4-, 8- and 12-channel version
- Direct Control and Low Voltage Control version
- 400Volt and 230Volt version

Thuja network:
- Thuja network connection “Link in” / “Link out” by 7pin XLR’s on front panel to:
• Link controllers (up to 99)
• Connect remotes
- The order of linking will automatically number the controllers on the remote
- Emergency stop in a linked configuration at SIL2 level

Characteristics

Article:
PAE-C4DC-10
